Actuators

LNP Series Linear actuators

LNP Series is the small linear table with high thrust force.
It became possible only by applying load in a table to build a mechanism easily.

Used for

Optical axis alignment for optical fibers

Optical axis alignment for optical communication components

Test piece position alignment for optical analyzers

Precision installation of minute parts/components

Positioning of inspection instruments measuring probes

Other uses requiring low lost motion

LNP -	6060 -	15 -	R	24	A -	50 -	PA -	SP
1	2	3	4	5	6	7	8	9

1.	Model	: LNP Series
2.	Table size (mm)	: 4040 = 40 x 40 : 5050 = 50 x 50 : 6060 = 60 x 60 : 7070 = 70 x 70
3.	Stroke (mm)	: 13, 15 (Changes with table size)
4.	Sensor mounting position	: R = Sensor mounted on the right side of the motor.
5.	Sensor power supply	: 24 = DC24V
6.	Sensor logic	: A = All N.C
7.	Reduction ratio	: 50, 100
8.	Motor type	: PA = Stepping motor, no shaft on the non-output side : PB = Stepping motor, with shaft on the non-output side (Special specification) : DC (AL) = DC Servo Motor (With line driver encoder) : DC (AO) = DC Servo Motor (With open collector encoder)
9.	SP	: Customized Specification (no available for Standard Product)

Item/model			LNP-4040-13	LNP-5050-13	LNP-6060-15	LNP-7070-15
Table size		mm	40 x 40	50 x 50	60 x 60	70 x 70
Stroke		mm	13	13	15	15
Resolution	Stepping motor	μm	For reduction ratio of 50:0.04(on full step), For a reduction ratio of 100:0.02(on full step)
	DC servo motor	μm	For reduction ratio of 50:0.056, For a reduction ratio of 100:0.028
Maximum speed		mm/s	For reduction ratio of 50:1.8, For a reduction ratio of 100:1.5
Load carrying capacity		kg	10
Repeatability		μm	±0.5
Positional accuracy		μm	6.0
Straightness		μm	1.0
Parallelism		μm	5.0
Lost motion		μm	1.0
Drive motor			Stepping motor or DC servo motor
Mass	DC servo motor	kg	0.65	0.75	0.85	1.1
	Stepping motor
CAD Downloads	DC servo motor		PDF DXF	DXF	DXF	DXF
	Stepping motor		PDF DXF	DXF	DXF	DXF
*The Table is part of the Micro Module PG series as manufactured by Suruga Seiki.

Stepping motor version Product Drawing

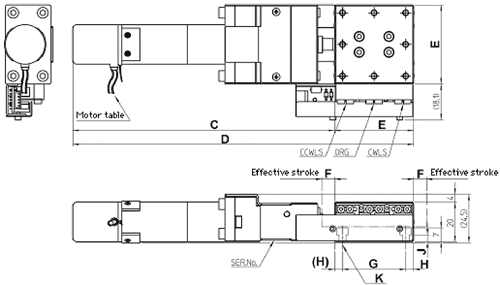

DC servo motor version

Unit: mm

Symbol/model	LNP-4040-13	LNP-5050-13	LNP-6060-15	LNP-7070-15
A	103.3	103.3	103.3	103.3
B	143.3	153.3	163.3	173.3
C	132.5	132.5	132.5	132.5
D	172.5	182.5	192.5	202.5
E	40	50	60	70
F	6.5	6.5	7.5	7.5
G	32	40	50	60
H	4	5	5	5
J	3.5	3.5	3	3
K	4-ø3.5 through hole ø6 counter bore	4-ø3.5 through hole ø6 counter bore	4-ø4.5 through hole ø8 counter bore	4-ø4.5 through hole ø8 counter bore
* Please confirm the screw hole size and location with the catalog or specification drawing since it changes with table sizes. Please confirm dimensions and specification with the drawing issued by Harmonic Drive LLC.
