LSA Series Laser Scanning Actuators

List of Features

LSA Series laser scanning Actuators are Galvano mirror type optical scanners capable of scanning at high speed and with high precision. A newly developed optical sensor and our unique mobile magnet type motors are used for the LSA Series laser scanning Actuators

LSA Series Linear actuators
Used for

  • Measuring instruments
  • Inspection instruments
  • Laser marking equipment
  • Communications equipment
  • Minute processing apparatus
  • Printed baseboard processing equipment
  • Laser display
  • For measuring instruments


    • List of Ratings

    Item/model

    LSA-10A-30

    LSA-50A-30

    Maximum angular runout

    (deg)

    ±15

    ±15

    Torque constant

    (N·m/A)

    0.0077 (0.0668 In.lb/A)

    0.05 (0.4335 In.lb/A)

    Sensor Linearity (on full scale)

    (%)

    ±0.06

    ±0.06

    Scale drift

    (%/°C)

    0.005

    0.015

    Position reproducibility
    (offset and scale drift excluded)

    (μrad)

    5

    5

    Mass

    (g)

    180

    500

    Combined driver



    PSM-130

    PSM-110

    CAD Downloads



    PDF DXF

    PDF DXF

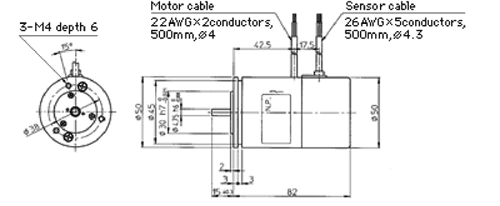

    Product Drawing

    LSA-10A-30
    LSA-10A-30

    LSA-50A-30

    LSA-50A-30

    Please confirm dimensions and specification with the drawing issued by Harmonic Drive LLC.
