DC servo actuators RHS/RFS series

RHS/RFS series

List of Features

The RHS/RFS series DC servo actuators are high-resolution, high-torque actuators combining precision harmonic drive gearing and DC servo motors. These actuators are recommended for use in almost all industrial fields, including industrial robots, semiconductor manufacturing equipment, measuring/inspection instruments - all of which demand precision motion control.

High torque, high stiffness
These performance capabilities are made possible thanks to the use of new "S" series harmonic drive gearing that has been developed in pursuit of high torque and high torsional stiffness.

High levels of accuracy and response
In addition to the true performance capabilities of harmonic drive gearing, a high level of response is realized through a substantial improvement made to the torque/inertia ratio.

Enhanced resistance to vibration and impact
Ingenuity is apparent in the details, including the fact that the rotor section has been re-constructed into a double-bearing configuration.

Drip-proof construction
A totally enclosed, splash-proof (IP-44) protective construction assures a high level of reliability.

A rich line-up of variations and options
A rich variety of models is offered, including shaft and flange type output members, etc. Furthermore, feedback devices such as tachogenerators and encorders are available for all models.


Ordering Code

RHS/RFS - 20 - 60 1 2 - T EO36 AL - SP
1 2 3 4 5 6 7 8
1. Model : RHS Series – with output shaft
  RFS Series – with output flange
2. Size : 14 & 17 (RHS only), 20,25, 32 (RHS/RFS)
3. Rated Speed : 60:60 rpm , 30:30rpm
4. Code represents one-tenth of rated output power [W]
5. Tech-Generator
(Option)		 : T----(7V/1000 rpm)
6. Encoder (Option)
Resolution		 : E020 = 200 P/rev
  E036 = 360 P/rev
  E050 = 500 P/rev
  E100 = 1000 P/rev
  E124 = 1024 P/rev
7. DO
AL
BL 		: Open Collector 5 – 12V
: Line Driver 5V
: Line Driver 12V
8. SP : Customized Specification (not available for Standard Product)

List of Ratings

Model of actuator
RHS-14
RHS-17
RHS-20/RFS-20
RHS-25/RFS-25
RHS-32/RFS-32
6003
3003
6006
3006
6007
3007
6012
3012
6012
3012
6018
3018
6018
3018
6030
3030
Rated Torque Inlb

48

69

87

177

106

212

177

266

177

354

266

531

266

531

443

885
Nm

5.4

7.8

9.8

20

12

24

20

30

20

40

30

60

30

60

50

100
Rated Speed of Rotation rpm

60

30

60

30

60

30

60

30

60

30

60

30

60

30

60

30
Max.Maomentary Trorque Inlb

159

248

301

478

504

743

504

743

885

1416

885

1416

1947

3009

1947

3009
Nm

18

28

34

54

57

84

57

84

100

160

100

160

220

340

220

340
Max.Speed of Rotation rpm

100

50

80

40

80

40

80

40

80

40

80

40

80

40

80

40
Mass kgs

1.7

2.7

3.3

3.9

5.4

6.1

9.4

11.1
RFS CAD Downloads
PDF DXF
PDF DXF
PDF DXF
PDF DXF
PDF DXF
PDF DXF
RHS CAD Downloads
PDF DXF
PDF DXF
PDF DXF
PDF DXF
PDF DXF
PDF DXF
PDF DXF
PDF DXF

Mass are Gearhead and Motor only.

Product Drawing

RFS Series

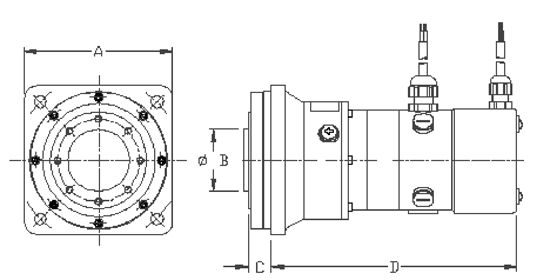

RFS Product Drawing

List of Dimensions

Size \ Symbol
A

øB

C

D

RFS-20-XX07

108

45

20

130.5

RFS-20-XX-07-T

108

45

20

177.5

RFS-20-XX07-E

108

45

20

177.5

RFS-20-XX07-TE

108

45

20

212.5

RFS-20-XX12

108

45

20

152.5

RFS-20-XX12-T

108

45

20

199.5

RFS-20-XX12-E

108

45

20

199.5

RFS-20-XX12-TE

108

45

20

234.5

RFS-25-XX12

130

60

22

164

RFS-25-XX12-T

130

60

22

211

RFS-25-XX12-E

130

60

22

211

RFS-25-XX12-TE

130

60

22

246

RFS-25-XX18

130

60

22

170

RFS-25-XX18-T

130

60

22

217

RFS-25-XX18-E

130

60

22

217

RFS-25-XX18-TE

130

60

22

252

RFS-32-XX18

165

80

25.5

184.5

RFS-32-XX18-T

165

80

25.5

231.5

RFS-32-XX18-E

165

80

25.5

231.5

RFS-32-XX18-TE

165

80

25.5

266.5

RFS-32-XX30

165

80

25.5

196.5

RFS-32-XX30-T

165

80

25.5

243.5

RFS-32-XX30-E

165

80

25.5

243.5

RFS-32-XX30-TE

165

80

25.5

278.5

Product Drawing

RHS Series

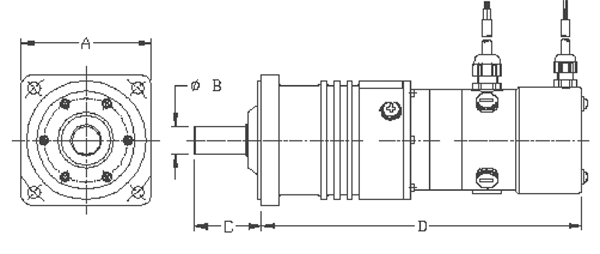

RHS Product Drawing

List of Dimensions

Size \ Symbol
A

øB

C

D

RHS-14-XX03

70

14

35

156

RHS-14-XX03-T

70

14

35

192.7

RHS-14-XX03-E

70

14

35

199

RHS-14-XX03-TE

70

14

35

233.5

RHS-17-XX06

76

18

40

190

RHS-17-XX06-T

76

18

40

226.7

RHS-17-XX06-E

76

18

40

233

RHS-17-XX06-TE

76

18

40

267.5

RHS-20-XX07

93

20

48

181

RHS-20-XX-07-T

93

20

48

228

RHS-20-XX07-E

93

20

48

228

RHS-20-XX07-TE

93

20

48

263

RHS-20-XX12

93

20

48

203

RHS-20-XX12-T

93

20

48

250

RHS-20-XX12-E

93

20

48

250

RHS-20-XX12-TE

93

20

48

285

RHS-25-XX12

116

25

60

218

RHS-25-XX12-T

116

25

60

265

RHS-25-XX12-E

116

25

60

265

RHS-25-XX12-TE

116

25

60

300

RHS-25-XX18

116

25

60

224

RHS-25-XX18-T

116

25

60

271

RHS-25-XX18-E

116

25

60

271

RHS-25-XX18-TE

116

25

60

306

RHS-32-XX18

137

32

80

250

RHS-32-XX18-T

137

32

80

297

RHS-32-XX18-E

137

32

80

297

RHS-32-XX18-TE

137

32

80

332

RHS-32-XX30

137

32

80

262

RHS-32-XX30-T

137

32

80

309

RHS-32-XX30-E

137

32

80

309

RHS-32-XX30-TE

137

32

80

344
