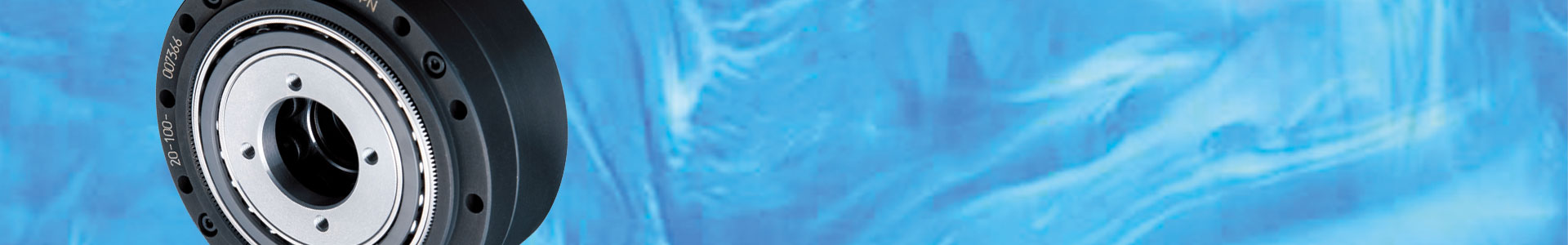

CSD-2UF

This zero backlash gear is available in 6 sizes with ratios 50:1 to 160:1 with peak torques 12~450 Nm.

Key Features:

• Zero Backlash
• Hollow shaft construction
• High load capacity
• Lightweight
• Ultra-flat
• Compact and simple design

Catalog

DXF CAD Files

PDF Drawings

3D CAD Files

Don't see what you need or not sure where to start?

Our team can help you find the right gear for your application!



Compare Products Your current units are metric. Change to english.

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm

Loading...

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm
Sort Sort
Hide
Sort
Hide
Sort
Hide
Selections
to
to
to
Select All   Select None
CSD-14-50-2UF 50 12 24
CSD-14-80-2UF 80 16 35
CSD-14-100-2UF 100 19 31
CSD-17-50-2UF 50 23 48
CSD-17-80-2UF 80 29 61
CSD-17-100-2UF 100 37 55
CSD-17-120-2UF 120 37 71
CSD-20-50-2UF 50 39 69
CSD-20-80-2UF 80 51 89
CSD-20-100-2UF 100 57 76
CSD-20-120-2UF 120 60 95
CSD-20-160-2UF 160 64 76
CSD-25-50-2UF 50 69 127
CSD-25-80-2UF 80 96 179
CSD-25-100-2UF 100 110 152
CSD-25-120-2UF 120 117 204
CSD-25-160-2UF 160 123 152
CSD-32-50-2UF 50 151 268
CSD-32-80-2UF 80 213 398
CSD-32-100-2UF 100 233 420
CSD-32-120-2UF 120 247 445
CSD-32-160-2UF 160 261 359
CSD-40-50-2UF 50 281 480
CSD-40-80-2UF 80 364 686
CSD-40-100-2UF 100 398 700
CSD-40-120-2UF 120 432 765
CSD-40-160-2UF 160 453 694
