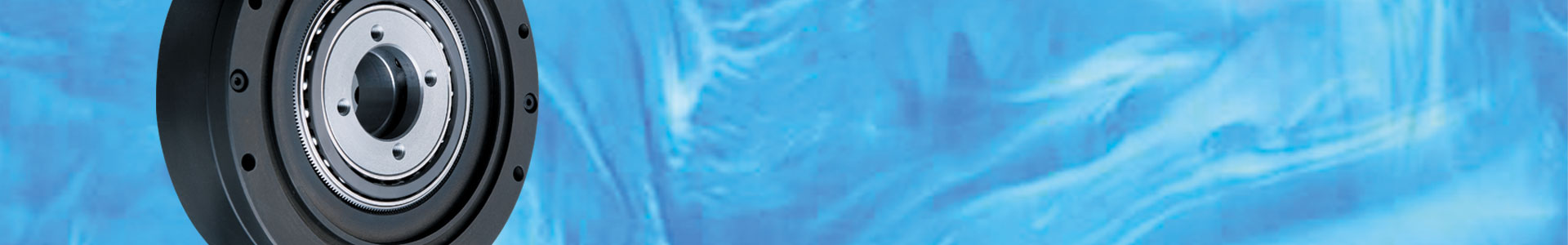

CSD-2UH

This housed gear is compact and ultra-flat. CSD-2UH comes in 7 sizes with ratios 50:1 to 160:1.

Key Features:

• Zero Backlash
• Ultra-flat
• Compact and simple design
• High load capacity
• Lightweight

Catalog

DXF CAD Files

PDF Drawings

3D CAD Files

Don't see what you need or not sure where to start?

Our team can help you find the right gear for your application!

Compare Products Your current units are metric. Change to english.

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm

Loading...

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm
Sort Sort
Hide
Sort
Hide
Sort
Hide
Selections
to
to
to
Select All   Select None
CSD-14-50-2UH 50 12 24
CSD-14-80-2UH 80 16 35
CSD-14-100-2UH 100 19 35
CSD-17-50-2UH 50 23 48
CSD-17-80-2UH 80 29 61
CSD-17-100-2UH 100 37 71
CSD-17-120-2UH 120 37 71
CSD-20-50-2UH 50 39 69
CSD-20-80-2UH 80 51 89
CSD-20-100-2UH 100 57 95
CSD-20-120-2UH 120 60 95
CSD-20-160-2UH 160 64 95
CSD-25-50-2UH 50 69 127
CSD-25-80-2UH 80 96 179
CSD-25-100-2UH 100 110 184
CSD-25-120-2UH 120 117 204
CSD-25-160-2UH 160 123 204
CSD-32-50-2UH 50 151 268
CSD-32-80-2UH 80 213 398
CSD-32-100-2UH 100 233 420
CSD-32-120-2UH 120 247 445
CSD-32-160-2UH 160 261 359
CSD-40-50-2UH 50 281 480
CSD-40-80-2UH 80 364 686
CSD-40-100-2UH 100 398 700
CSD-40-120-2UH 120 432 765
CSD-40-160-2UH 160 453 694
CSD-50-50-2UH 50 500 1,000
CSD-50-80-2UH 80 500 1,000
CSD-50-100-2UH 100 686 1,440
CSD-50-120-2UH 120 686 1,440
CSD-50-160-2UH 160 823 1,577
