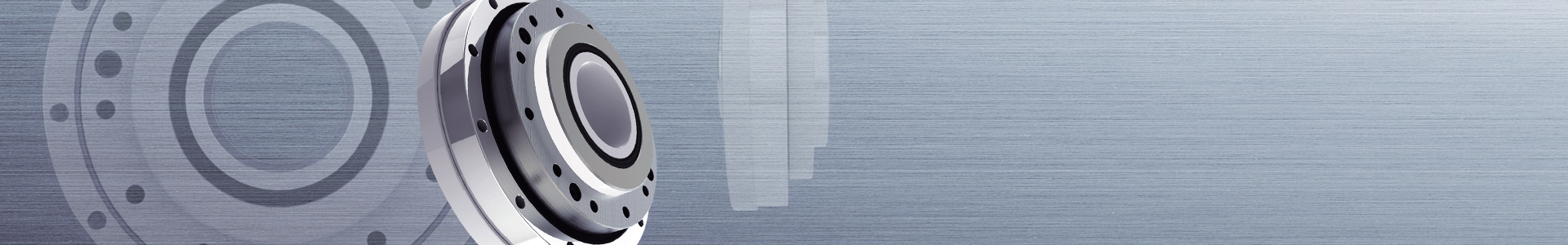

SHD-2UH-LW

Axially compact, these gear units feature a large hollow input shaft and a robust cross roller bearing so loads can be mounted directly to the unit without the need for additional support bearings.

Key Features:


• Zero Backlash
• Ultra-flat design - 15% shorter than the SHF Series
• Large Hollow Input Shaft
• Accuracy <1 arc-min (most sizes)
• Rigid cross roller output bearing
• Lightweight - 30% lower weight than Standard SHF Series

Catalog

DXF CAD Files

PDF Drawings

Request a Solid Model

Don't see what you need or not sure where to start?

Our team can help you find the right gear for your application!



Compare Products Your current units are metric. Change to english.

Part Number Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm

Loading...

Part Number Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm
Sort Sort
Hide
Sort
Hide
Sort
Hide
Selections
to
to
to
Select All   Select None
SHD-14-50-2UH-LW 50 12 23
SHD-14-100-2UH-LW 100 19 35
SHD-17-50-2UH-LW 50 23 48
SHD-17-100-2UH-LW 100 37 71
SHD-20-50-2UH-LW 50 39 69
SHD-20-100-2UH-LW 100 57 95
SHD-20-160-2UH-LW 160 64 95
SHD-25-50-2UH-LW 50 69 127
SHD-25-100-2UH-LW 100 110 184
SHD-25-160-2UH-LW 160 123 204
SHD-32-50-2UH-LW 50 151 268
SHD-32-100-2UH-LW 100 233 420
SHD-32-160-2UH-LW 160 261 445
SHD-40-50-2UH-LW 50 281 480
SHD-40-100-2UH-LW 100 398 700
SHD-40-160-2UH-LW 160 453 765
