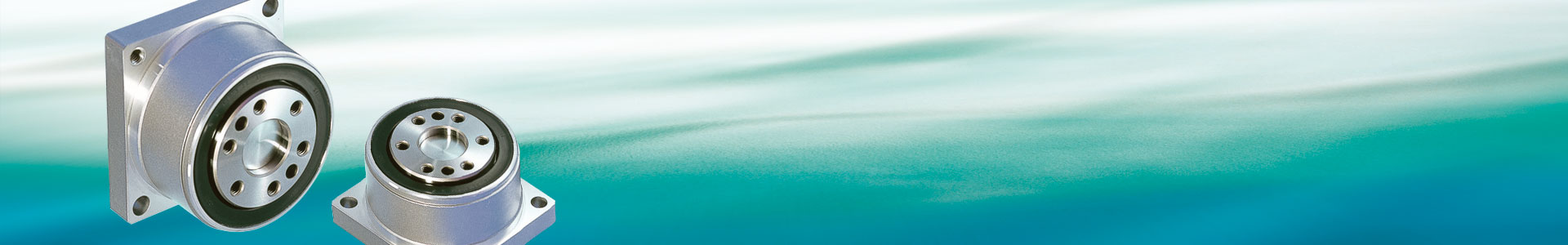

CSF-2XH

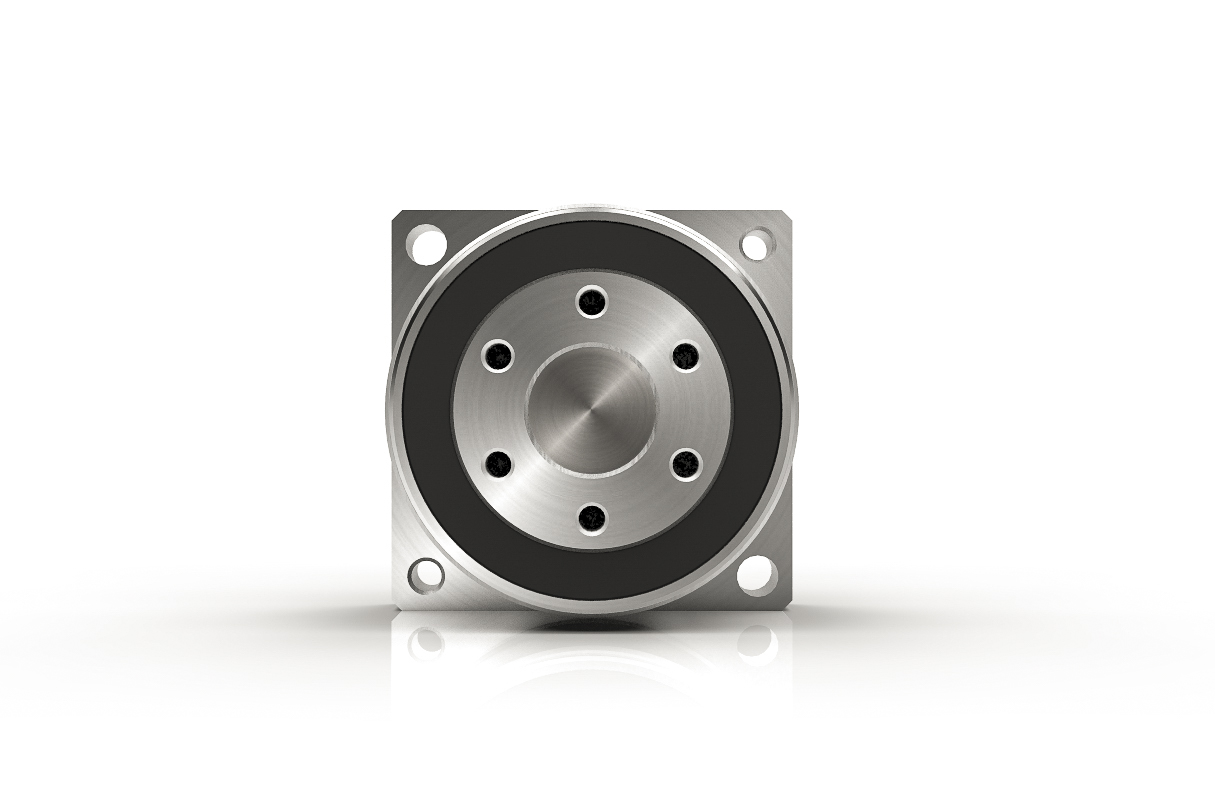

Available with an output shaft or flange, the CSF 2XH miniature gearheads are designed to couple directly to any servomotor. The motor shaft is attached directly to the gearhead input element. CSF-2XH miniature gearhead is offered in 4 sizes with gear ratios 30:1 to 100:1 and peak torques: .5~28Nm.

Key Features:

  • Zero backlash
  • High positioning accuracy (± 1.5 to 10 arc-min ) in a very compact package
  • Compact 4-point ball bearing mounted in main shaft
  • 22mm~53mm
  • S tooth profile

Don't see what you need or not sure where to start?

Our team can help you find the right gear for your application!

Catalog

dxf CAD (CSF-2XH-F) pdf CAD (CSF-2XH-F)

dxf CAD (CSF-2XH-J) pdf CAD (CSF-2XH-J)

3D CAD Files

CSF-14-2XH-F

Compare Products Your current units are metric. Change to english.

Part Number Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm

Loading...

Part Number Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm
Sort Sort
Hide
Sort
Hide
Sort
Hide
Selections
to
to
to
Select All   Select None
CSF-5-30-2XH-F 30 0.5 0.9
CSF-5-30-2XH-J 30 0.5 0.9
CSF-5-50-2XH-F 50 0.9 1.8
CSF-5-50-2XH-J 50 0.9 1.8
CSF-5-100-2XH-F 100 1.4 2.7
CSF-5-100-2XH-J 100 1.4 2.7
CSF-8-30-2XH-F 30 1.8 3.3
CSF-8-30-2XH-J 30 1.8 3.3
CSF-8-50-2XH-F 50 3.3 6.6
CSF-8-50-2XH-J 50 3.3 6.6
CSF-8-100-2XH-F 100 4.8 9
CSF-8-100-2XH-J 100 4.8 9
CSF-11-30-2XH-F 30 4.5 8.5
CSF-11-30-2XH-J 30 4.5 8.5
CSF-11-50-2XH-F 50 8.3 17
CSF-11-50-2XH-J 50 8.3 17
CSF-11-100-2XH-F 100 11 25
CSF-11-100-2XH-J 100 11 25
CSF-14-30-2XH-F 30 9 17
CSF-14-30-2XH-J 30 9 17
CSF-14-50-2XH-F 50 18 35
CSF-14-50-2XH-J 50 18 35
CSF-14-80-2XH-F 80 23 47
CSF-14-80-2XH-J 80 23 47
CSF-14-100-2XH-F 100 28 54
CSF-14-100-2XH-J 100 28 54
