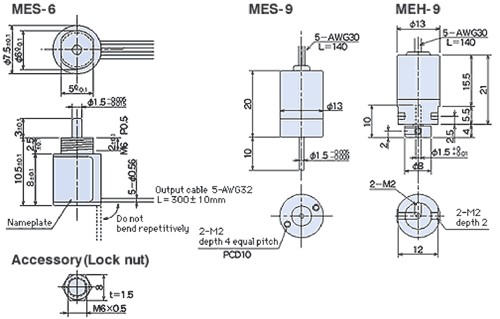

Item/model

MES-6- PC

ME 9- P

Power supply

DC5V±10%

DC5V±10%

Current consumption

30mA or less (without load)

40mA or less (without load)

Signal detection code

Incremental

Incremental

Output

Output pulses
(Standard)
[Pulses/evolution]

100 200
300 360

100 200 300
360 500

1000

Output phase

A, B, Z

A, B, Z (Z = "H")

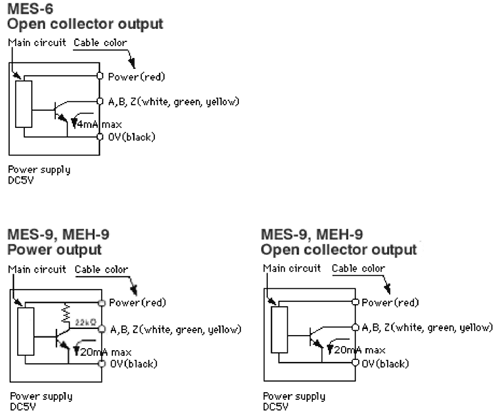

Output signal

Square wave open collector output

Square wave open collector
output , or, voltage output

Output capacity

Sink current: 4mA
(output withstand voltage 7V)
Residual voltage: 0.4V or less

Sink current: 20mA
Residual voltage: 0.5V (at 10mA)

Max. response frequency
(response pulses)

100kHz

100kHz

Output phase difference

A and B phase difference
90°±45° (T/4 ±T/8)
Z phase T ±T/2
(see output waveform
diagram)

A and B phase difference
90°±45° (T/4 ±T/8)
Z phase T ±T/2
(see output waveform
diagram)

Waveform rise
and fall time

2μs or less
(output cable 300mm or less)

2μs or less
(output cable 140mm or less)

Starting torque

0.3x10-3N•m
(3gf-cm) or less

1.0x10-3N•m
(10gf-cm) or less

Permissible shaft
load (Electrical)

Radial

1.9N (0.43 lb)

1.9N (0.43 lb)

0.98N (0.22 lb)

Thrust

0.98N (0.22 lb)

1.9N (0.43 lb)

0.98N (0.22 lb)

Permissible Max. revolutions (Mechanical)

6000r/min

6000r/min

Operating temperature/humidity

0°C∼60°C
RH35%∼90%
No condensation

0°C∼60°C
RH35%∼90%
No condensation

Storage temperature

-20°C∼80°C

-20°C∼80°C

Resistance to vibration

Frequency 55Hz,
double amplitude 1.5mm
Withstands 2 hours
each in X, Y and Z directions

Frequency 55Hz,
double amplitude 1.5mm
Withstands 2 hours
each in X, Y and Z directions

Resistance to shock

500m/s2 (about 50G)
Withstands 3 cycles
each in X, Y and Z directions

500m/s2 (about 50G)
Withstands 3 cycles
each in X, Y and Z directions

Cable

Vinyl sheathed (AWG32)
Cable length 300mm

Vinyl sheathed (AWG30)
Cable length 140mm

Mass

5g

10g
