HMA Motors

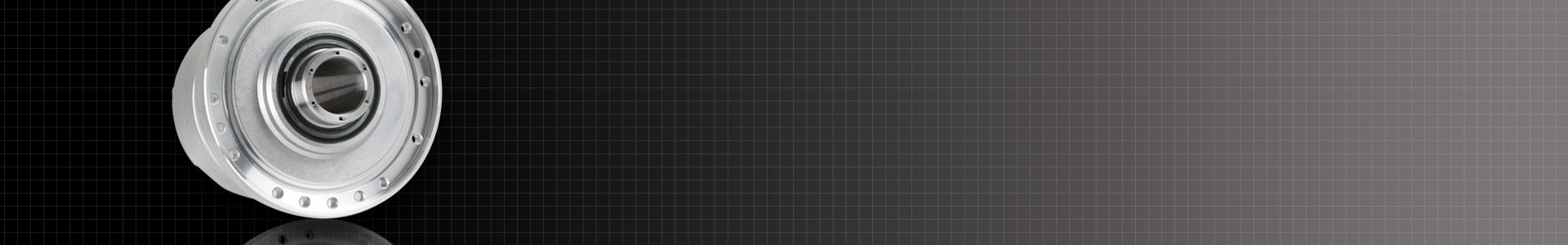

HMA Hollow shaft servo motors are available in 5 frame sizes. Large Hollow Shaft design allows cables, shafts or lasers to pass through the axis of rotation.


Models:

HMAC08*200 | HMAB09*200 | HMAB09*100 | HMAB12*200 | HMAB15*200 | HMAA21A*200


Key Features:

  • AC Servomotor
  • Large Hollow Shaft
  • Absolute Encoder (17 bit single-turn, 16 bit multi-turn)
  • Available in 5 frame sizes
  • Rated output from 163 to 1320 W
  • Available with or without brake
  • New version connects directly with Yaskawa Σ-7 Series



Manual

Catalog

PDF Drawings

3D CAD Files

Don't see what you need or not sure where to start?

Our team can help you find the right product for your application!




Ordering Code

HMA B 09 A 200 - 10 S17b A - C SP
1 2 3 4 5 6 7 8 9 10 11



1.

Model

AC servo motor HMA series

2. Motor Version Symbol

A: Size 21A
B: Size 09, 12, 15
C: Size 08

3. Size

08, 09, 12, 15, 21A

4. Brake

A: Without brake
B: With brake

5. Applied
Servo Driver
Input Voltage

100: 120 VAC
(Only size 09 is compatible with 100 VAC)
200: 230 VAC

6. Encoder Format

10: A-format 2.5 Mbps, 1:1 connection

17: Yaskawa

7. Encoder Resolution

S17b: 17-bit absolute encoder

8. Encoder Phase Angle

Phase difference between the motor U
phase and the encoder origin
A: 0 degrees

9. Connector
Specification

C : With standard connectors
N : Without connectors

10.
Option Symbols

Y : Side exiting cable

11. Special specification

: Blank - Standard product
: SP____ - Special specification code

Specifications:

Item HMAC08 HMAB09 HMAB12 HMAB15 HMAA21
Power Supply Voltage 230VAC

230VAC

120VAC 230VAC 230VAC 230VAC
Rated torque *1,*2 Nm 0.52

0.80

1.55 3.6 12.6
Rated rotational speed *1,*2 rpm 3000 3000 2500 2000 1000
Rated power *1,*2 W 163 251 406 754 1320
Torque constant *1 Nm/A(rms) 0.35 0.41 0.24 0.44 0.54 0.72
Rated current *1,*2 A(rms) 2.1 2.5 4.3 4.2 7.8 20.0
Rated stall current *2 A 2.4 3.6 6.2 8.5 13 33
Max. torque *1 Nm 1.8 3 6.6 13 33
Max. rotational speed *1 rpm 6000 5600 4800 4800 4000 3000
Max. current *1 A(rms) 6.5 8.9 15.4 19 29 75
EMF constant *3 V/(rpm) 0.037 0.043 0.025 0.046 0.057 0.075
Phase resistance (at 20℃) Ω 1.43 1.2 0.4 0.33 0.19 0.028
Phase inductance mH 2.5 3 1 1.4 1.2 0.29
Moment of Inertia (without brake) x10-4 kg・m2 .734 1.78 6.45 15.8 125
Moment of Inertia (with brake) x10-4 kg・m2 .828 2.16 6.83 19.8 141
Mass (without brake) kg 1.4 2.0 3.4 5.5 17.5
Mass (with brake) kg 1.5 2.1 3.8 6.2 19.7
Power Supply Voltage V AC200 AC200 AC100 AC200 AC200 AC200
Servo Drive REL-230-18 REL-230-18 REL-230-36 REL-230-36 - -
Encoder type Absolute encoder
Single turn motor revolution encoder resolution

217 (131072)

Multi-turn revolution counter *4

(battery buffered)

216 ( 65536)
Motor insulation Insulation resistance: 100 MΩ (500 VDC) or higher

Dielectric strength : AC1500V/1min Insulation class : A

* B indicates with brake
* The table shows typical output values

* 1 When tested with HA-800
* 2 Value after temperature rise and saturation when it is used with aluminum heatsink shown below:
HMAC08: 320 x 320 x 16 [mm], HMAB09: 350 x 350 x 18 [mm], HMAB12: 400 x 400 x 20 [mm], HMAB15: 500 x 500 x 25 [mm], HMAA21A: 650 x 650 x 30 [mm]
* 3 This is the value of the phase EMF constant multiplied by 3.
* 4 The range of the multi revolution counter is from -32,768 to 32,767.
