CSG-2A-LW

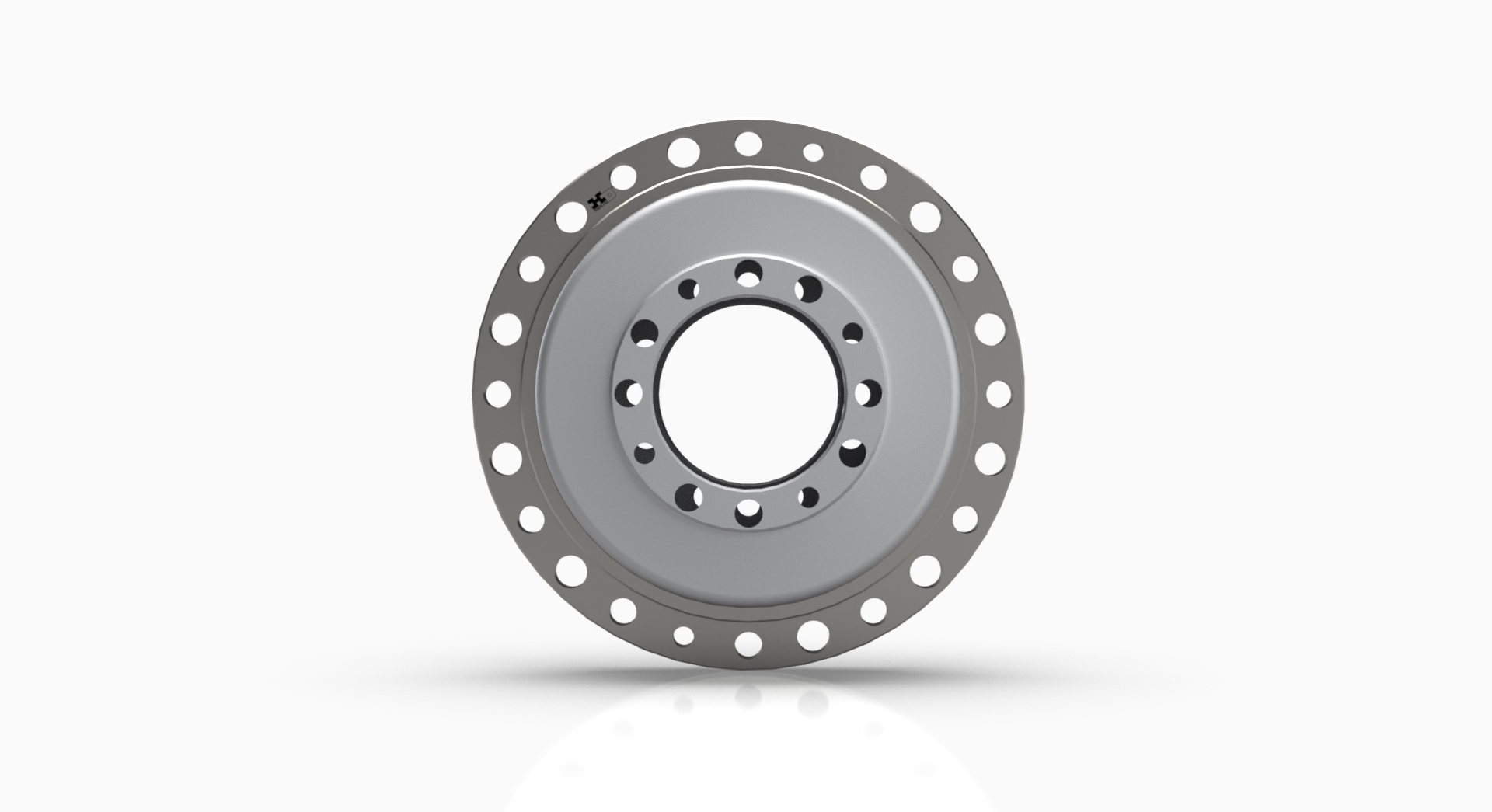

The Harmonic Drive® CSG Lightweight component set is compact and can be directly integrated into your machinery/equipment. The CSG-2A-LW product is available in two versions: CSG-2A-LW for maximum torque and CSG-2A-LW-BB (big bore) for maximum through hole size. Available in 5 sizes and multiple ratios, you can select the unit that is most suitable for your project.

Key Features:

  • Lightweight, 30+% lighter than standard CSG component
  • Zero backlash
  • Compact and simple configuration
  • High torque capacity
  • High rigidity
  • High accuracy
  • High efficiency
  • Coaxial input and output

Don't see what you need or not sure where to start?

Our team can help you find the right gear for your application!

Compare Products Your current units are metric. Change to english.

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm

Loading...

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm
Sort Sort
Hide
Sort
Hide
Sort
Hide
Selections
to
to
to
Select All   Select None
CSG-14-50-2A-GR-BB-LW 50 23 46
CSG-14-80-2A-GR-BB-LW 80 30 61
CSG-14-100-2A-GR-BB-LW 100 36 70
CSG-17-50-2A-GR-BB-LW 50 44 91
CSG-17-50-2A-GR-LW 50 44 91
CSG-17-80-2A-GR-BB-LW 80 56 113
CSG-17-80-2A-GR-LW 80 56 113
CSG-17-100-2A-GR-BB-LW 100 70 125
CSG-17-100-2A-GR-LW 100 70 143
CSG-17-120-2A-GR-BB-LW 120 70 112
CSG-17-120-2A-GR-LW 120 70 112
CSG-20-50-2A-GR-BB-LW 50 73 127
CSG-20-50-2A-GR-LW 50 73 127
CSG-20-80-2A-GR-BB-LW 80 96 155
CSG-20-80-2A-GR-LW 80 96 165
CSG-20-100-2A-GR-BB-LW 100 107 155
CSG-20-100-2A-GR-LW 100 107 191
CSG-20-120-2A-GR-BB-LW 120 113 155
CSG-20-120-2A-GR-LW 120 113 191
CSG-20-160-2A-GR-BB-LW 160 120 155
CSG-20-160-2A-GR-LW 160 120 191
CSG-25-50-2A-GR-BB-LW 50 127 242
CSG-25-50-2A-GR-LW 50 127 242
CSG-25-80-2A-GR-BB-LW 80 178 332
CSG-25-80-2A-GR-LW 80 178 332
CSG-25-100-2A-GR-BB-LW 100 204 342
CSG-25-100-2A-GR-LW 100 204 369
CSG-25-120-2A-GR-BB-LW 120 217 342
CSG-25-120-2A-GR-LW 120 217 395
CSG-25-160-2A-GR-BB-LW 160 229 342
CSG-25-160-2A-GR-LW 160 229 408
CSG-32-50-2A-GR-BB-LW 50 281 497
CSG-32-50-2A-GR-LW 50 281 497
CSG-32-80-2A-GR-BB-LW 80 395 535
CSG-32-80-2A-GR-LW 80 395 738
CSG-32-100-2A-GR-BB-LW 100 433 535
CSG-32-100-2A-GR-LW 100 433 841
CSG-32-120-2A-GR-BB-LW 120 459 535
CSG-32-120-2A-GR-LW 120 459 892
CSG-32-160-2A-GR-BB-LW 160 484 535
CSG-32-160-2A-GR-LW 160 484 892
