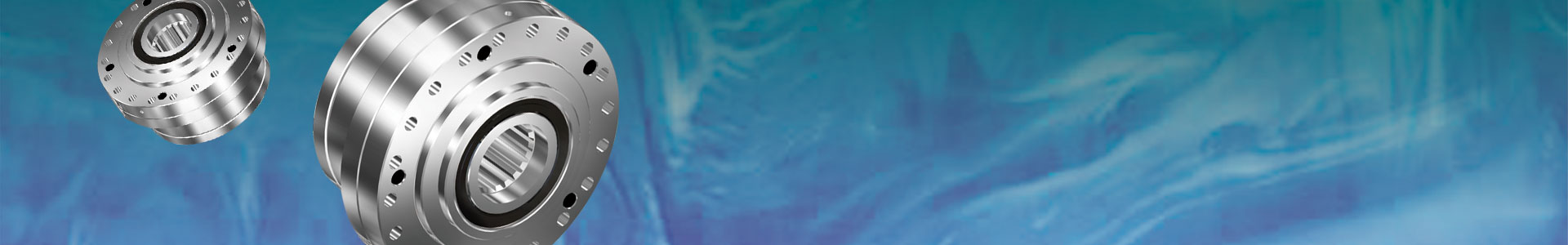

CSG-2UK
CSG-2UK is a high torque fully sealed, high accuracy gear reducer ideally suited for machine tool applications.
Key Features:
- Zero backlash
- Compatible with Fanuc motors
- High torque capacity
- High torsional stiffness
- High positioning accuracy
Catalog
DXF CAD Files
|
Don't see what you need or not sure where to start? Our team can help you find the right gear for your application!
|
| |
Compare Products Your current units are metric. Change to english.
| Ordering Code | Ratio | Limit for Repeated Peak Torque | Limit for Momentary Peak Torque |
| Compare Products | Nm | Nm |
Loading...
| Ordering Code | Ratio | Limit for Repeated Peak Torque | Limit for Momentary Peak Torque |
| Compare Products | Nm | Nm | |
| Sort |
Sort
Hide |
Sort
Hide |
Sort
Hide |
| Selections |
to
|
to
|
to
|
| Select All Select None | |||
| CSG-25-50-2UK | 50 | 127 | 242 |
| CSG-25-80-2UK | 80 | 178 | 332 |
| CSG-25-100-2UK | 100 | 204 | 369 |
| CSG-25-120-2UK | 120 | 217 | 395 |
| CSG-25-160-2UK | 160 | 229 | 408 |
| CSG-32-50-2UK | 50 | 281 | 497 |
| CSG-32-80-2UK | 80 | 395 | 738 |
| CSG-32-100-2UK | 100 | 433 | 841 |
| CSG-32-120-2UK | 120 | 459 | 892 |
| CSG-32-160-2UK | 160 | 484 | 892 |
| CSG-40-50-2UK | 50 | 523 | 892 |
| CSG-40-80-2UK | 80 | 675 | 1,270 |
| CSG-40-100-2UK | 100 | 738 | 1,400 |
| CSG-40-120-2UK | 120 | 802 | 1,530 |
| CSG-40-160-2UK | 160 | 841 | 1,530 |
| CSG-45-50-2UK | 50 | 650 | 1,235 |
| CSG-45-80-2UK | 80 | 918 | 1,651 |
| CSG-45-100-2UK | 100 | 982 | 2,041 |
| CSG-45-120-2UK | 120 | 1,070 | 2,288 |
| CSG-45-160-2UK | 160 | 1,147 | 2,483 |
| CSG-58-80-2UK | 80 | 1,924 | 3,185 |
| CSG-58-100-2UK | 100 | 2,067 | 4,134 |
| CSG-58-120-2UK | 120 | 2,236 | 4,329 |
| CSG-58-160-2UK | 160 | 2,392 | 4,459 |
| CSG-65-80-2UK | 80 | 2,743 | 4,836 |
| CSG-65-100-2UK | 100 | 2,990 | 6,175 |
| CSG-65-120-2UK | 120 | 3,263 | 6,175 |
| CSG-65-160-2UK | 160 | 3,419 | 6,175 |
