KDU

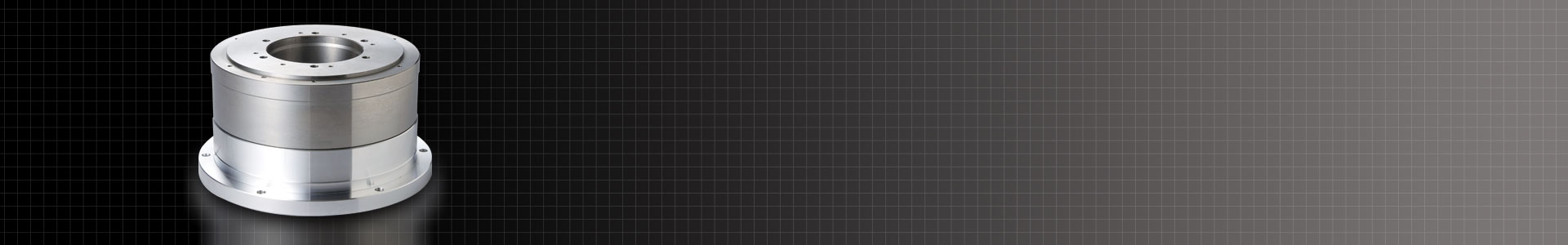

The KDU Series are Direct Drive Motors which achieve 10 arc-sec positioning accuracy as well as ±0.5 arc-sec repeatability with a resolution of 0.16 arc-sec. The KDU has a large Hollow Shaft design which allows cables, shafts or lasers to pass through the axis of rotation.

Key Features:

Exceptional positional accuracy
Exceptional repeatability
Ultra high resolution

DXF CAD Files

PDF Drawings

3D CAD Files

Contact our experts to find the right solution and get started today!

Model Ordering Code

KDU - 13 - S	D 3-	100	SP
1	2	3	4

1.	Model:	Direct Drive Motor, KDU Series KDU - 13 - S : KDU-13-SB-E08-100 KDU - 13 - W : KDU-13-WB-E08-100
2.	System:	Combination with AC servo driver, HA-770-2
3.	Power Voltage:	100: AC100V 200: AC200V
4.	Specification Symbol:	No mark : Standard item SP : Customized specification

Single Motor:

KDU -	13S	B-	E	10	-SP
1	2	3	4	5	6

1.	Model:	Direct Drive Motor, KDU Series
2.	Model Number:	13S, 13W
3.	Version Symbol:	B
4.	Encoder Type:	E: Incremental Encoder
5.	Encoder Resolution:	10: 11,840,000 p/rev
6.	Special Specification:	No mark : Standard item SP : Customized specification

List of Ratings

Item/Model		KDU-13SB	KDU-13WB
Maximum torque *2	Nm	7.0Nm (62.0 In.lb)	15.0Nm(132.8 In.lb)
Maximum rotational speed	rpm	180	160
Torque constant	Nm/A	3.1Nm/A (26.9 In.lb/A)	6.5Nm/A (56.4 In.lb/A)
Input power supply voltage	V	AC100
Moment of inertia	kg•m¹	0.0047	0.0065
Moment stiffness	Nm/rad	2.4X105
Motor position sensor	pulse/rev	Incremental encoder Square wave : phase A and B: 11,840,000 Pulse signal of phase Z
Repeatability positioning precision *3	arc sec	±0.5
Absolute positioning accuracy *3	arc sec	10 (Angular position corrected) *4
Mass	kg	4.0	5.0
Mounting direction	-	Output shaft to face upward
Combined driver	-	HA-770-2
CAD Downloads		PDF DXF	PDF DXF
Note1: * The table above shows output values of output shaft. Note2: * The values in the table above are obtained when connected to HA-770 servo driver. Note3: * The repeatability positioning precision and Absolute positioning accuracy repeatability are the values measured in an environment of 23 ±0.3°C in temperature, 50% RH in humidity and with output shaft facing upward in mounting direction. Please contact Harmonic Drive LLC, for specific environmental tolerances. Note4: * Value after angular position of the HA-770 servo driver is corrected.

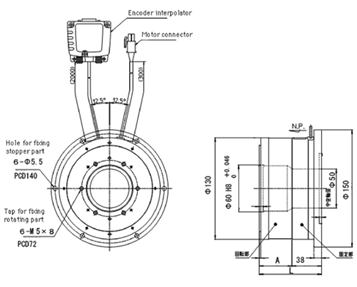

Product Drawing

List of Dimensions

Unit: mm

Motor type	KDU-13SB	KDU-13WB
A	42	56
L	80	94
Please confirm dimensions and specifications with the drawing issued by Harmonic Drive LLC.
