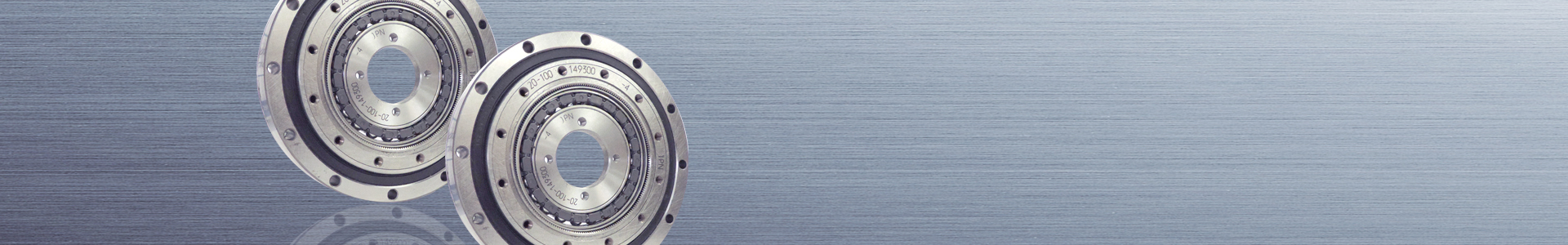

SHD-2SH

Axially compact, these gear units feature a large hollow input shaft and a robust cross roller bearing so loads can be mounted directly to the unit without the need for additional support bearings.

Key Features:


• Zero backlash
• Extremely flat profile
• Hollow through bore
• High positioning accuracy
• High stiffness cross roller bearing output
• High radial, axial, and moment load capacity

Catalog

DXF CAD Files

PDF Drawings

Request a Solid Model

Contact our experts to find the right solution and get started today!



Compare Products Your current units are metric. Change to english.

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm

Loading...

Ordering Code Ratio Limit for Repeated Peak Torque Limit for Momentary Peak Torque
Compare Products Nm Nm
Sort Sort
Hide
Sort
Hide
Sort
Hide
Selections
to
to
to
Select All   Select None
SHD-14-50-2SH 50 12 23
SHD-14-80-2SH 80 16 35
SHD-14-100-2SH 100 19 35
SHD-17-50-2SH 50 23 48
SHD-17-80-2SH 80 29 61
SHD-17-100-2SH 100 37 71
SHD-20-50-2SH 50 39 69
SHD-20-80-2SH 80 51 89
SHD-20-100-2SH 100 57 95
SHD-25-50-2SH 50 69 127
SHD-25-80-2SH 80 96 179
SHD-25-100-2SH 100 110 184
SHD-32-50-2SH 50 151 268
SHD-32-80-2SH 80 213 398
SHD-32-100-2SH 100 233 420
SHD-40-50-2SH 50 281 480
SHD-40-80-2SH 80 364 686
SHD-40-100-2SH 100 398 700
