Rotary Actuators

Harmonic Drive offers rotary actuator products that maximize torque while inherently possessing high positional accuracy. Our extensive in-house design and build capabilities enable us to design and manufacture customized actuators to meet specific application needs.

As a manufacturer of harmonic gearing and other actuator componentry including brushless servo motors, cross roller bearings, integrated drives and absolute encoders, we are uniquely positioned to combine these elements into optimal, cost-effective solutions.

These complete servo actuators prevent machine designers from having to select a motor and gearhead and characterize their expected performance. They provide the fastest solution for executing a fully operational machine design.

Available rotary drive actuator options include conventional integrated and hollow shaft versions in multiple sizes and gear ratios from 11:1 to 161:1.

Integrated Actuators Hollow Shaft Servo Actuators Actuators - without Hollow Shaft Why Partner With Harmonic Drive?

We can provide a mini actuator with an integrated servo drive utilizing CANopen® communication. The device features a single cable connection with only 4 conductors needed: CANH, CANL, +24VDC, 0VDC.

Integrated actuators have numerous industrial and manufacturing applications:

  • Robotics: Actuators assist with robot positioning and rotation. They also enable end-of-arm robotic tooling when using grippers, welding torches, sensors and other devices.
  • Automation: Rotary actuators support the function of various automated systems, such as assembly lines and packaging equipment.
  • Aerospace: These devices are essential in operating aircraft systems, like landing gear and control surfaces.
  • Fluid flow: Actuators help regulate the flow of fluids through valves in HVAC systems.

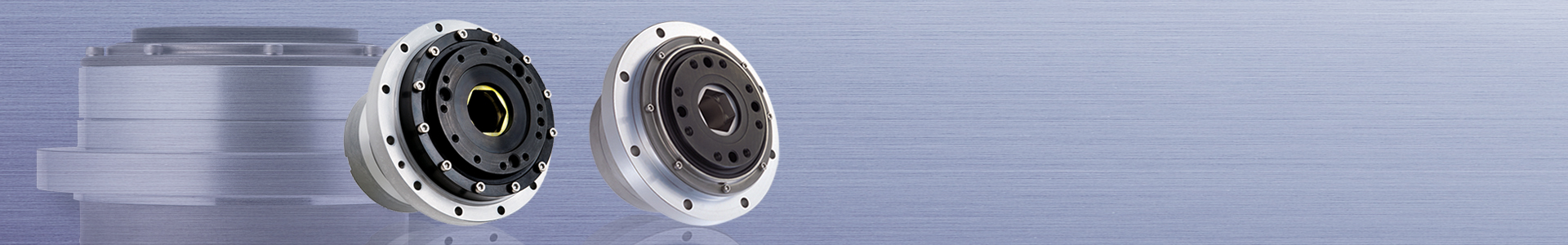

These brushless actuators feature a large hollow bore that allows wires, tubing, laser beams or other components to pass directly through the axis of rotation.

The various hollow rotary actuator applications include:

  • Robotics: The hollow shaft facilitates the routing of cables for operating a robot's manipulator arms or hands.
  • Semiconductors: The actuator's hollow shaft can also accommodate wiring and tubing for inspection equipment and wafer handling systems used in semiconductor manufacturing.
  • Automation: Actuators enable the routing of pneumatic lines and cables for factory automation equipment.
  • Machine tools: Milling machines and similar equipment can use hollow shaft actuators to permit the running of sensor cables and coolant lines.
FHA-Mini

FHA-Mini

Extremely small Hollow Shaft Actuators deliver high torque with exceptional accuracy and repeatability. Peak torque 1.8~28 Nm, max speed 60~200 rpm.

Learn More

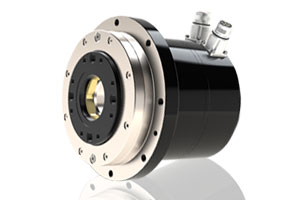

FHA-C

FHA-C

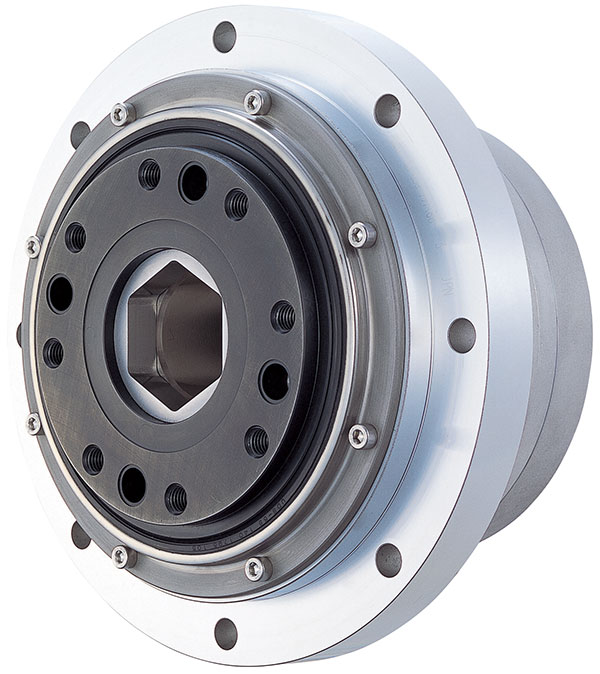

Super-flat hollow shaft actuators with high torque, high positioning accuracy and high torsional stiffness. Peak torque 39~820 Nm, max speed 22~96 rpm.

Learn More

FHA-C PR

FHA-C PR

Hollow shaft actuators available in 4 sizes with 5 reduction ratios. FHA-C-PR offers high-precision rotary positioning with superior one-way and bi-directional repeatability.

Learn More

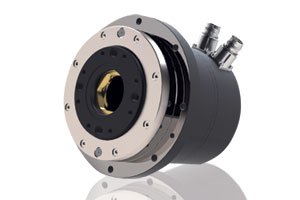

FHA-C H

FHA-C H

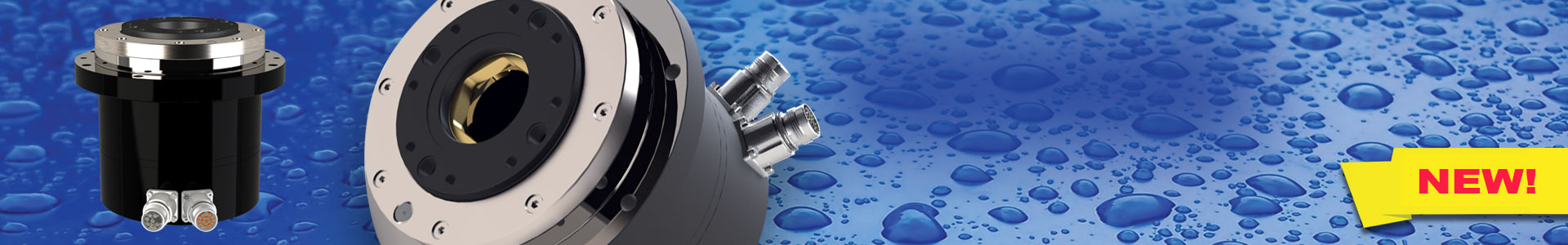

FHA-C Series servo actuators are now available with IP65 protection. Four sizes are available: 17, 25, 32 and 40. The new IP65 rated version of our FHA-C actuator is ideal for harsh environments.

Learn More

SHA-SG

SHA-SG

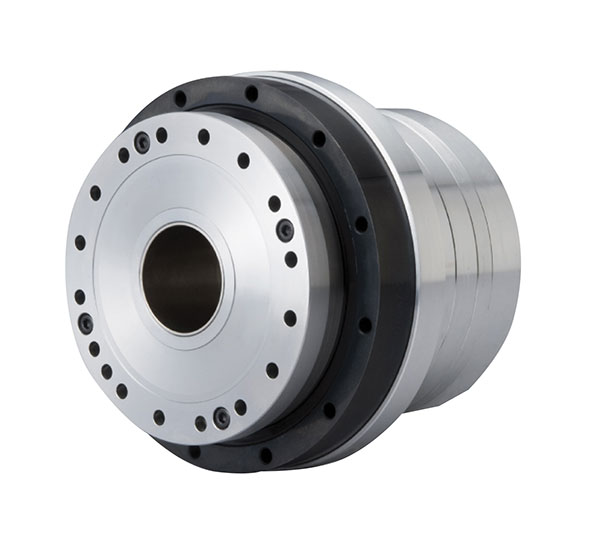

Hollow shaft actuator with a compact outer diameter and exceptional torque/volume ratio. Peak torque 73~3419 Nm, Max speed 17.4~117.6.

Learn More

SHA-CG

SHA-CG

Hollow shaft actuator offering direct drive motor performance, while being more compact and weighing 80-90% less. Offers superior precision rotary positioning.

Learn More

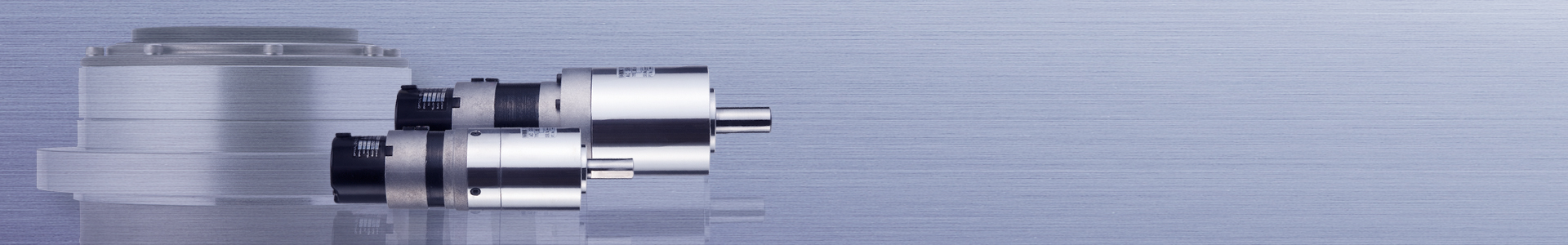

We offer a full line of DC, AC and brushless solid shaft actuators. Typical applications include:

  • Automation: The actuators ensure high-precision motion control in automated assembly lines.
  • CNC machinery: These devices provide accurate motion during engraving, cutting and milling.
  • Agriculture: Tractors, harvesters and other farming machinery use solid shaft actuators to power various equipment components.
  • Medical: Actuators assist the function of devices like surgical robots and automated patient beds.
FHA-Mini Dual Absolute

FHA-Mini Dual Absolute

Introducing new options for FHA-C mini (24VDC): DUAL Absolute Encoders and Panel Mount Connectors. Extremely small actuators deliver high torque with exceptional accuracy and repeatability. Peak torque 1.8~28 Nm, max speed 60~200 rpm.

Learn More

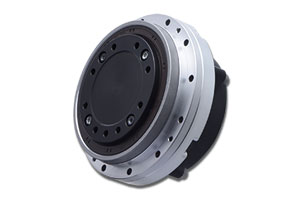

FLA

FLA

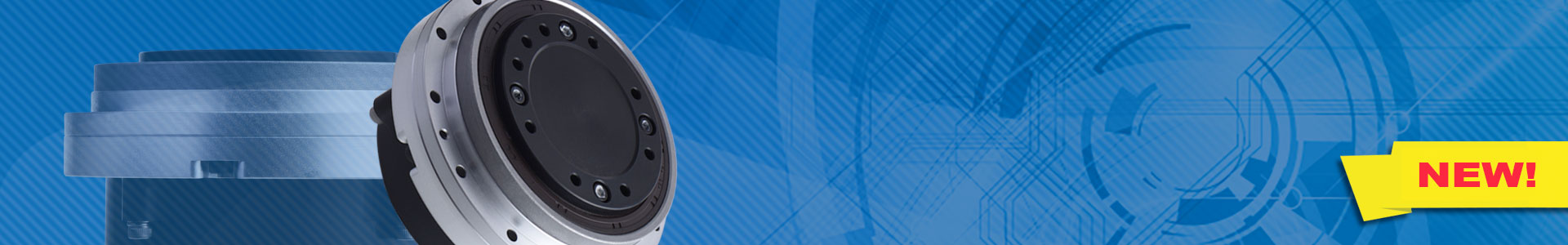

The new ultra-flat, ultra-light brushless actuators combine our high-precision/high-performance reducers with a compact, high-output brushless DC motor. Perfect for exoskeletons.

Learn More

RSF-Supermini

RSF-Supermini

Small enough to fit inside the finger of a robotic hand, these servo actuators operate with a wide range of drivers. Peak torque .13~1.4 Nm, max speed 100~333 rpm.

Learn More

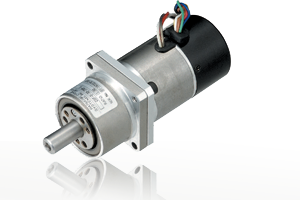

RSF-Mini

RSF-Mini

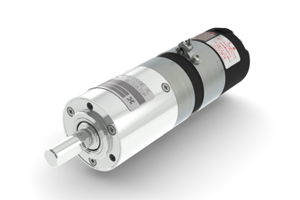

Available in 3 sizes, these brushless servo actuators deliver exceptional positioning accuracy in a compact package. Peak torque 1.8~28 Nm, max speed 60~200 rpm.

Learn More

RSF

RSF

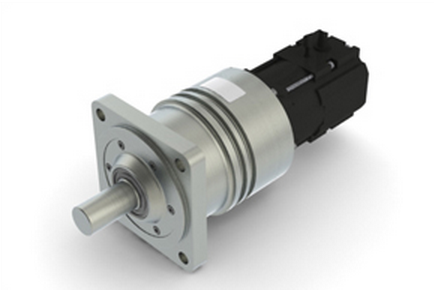

Available in 4 sizes, these brushless servo actuators deliver exceptional positioning accuracy in a compact package. Peak torque 34~330 Nm, max speed 45~90 rpm.

Learn More

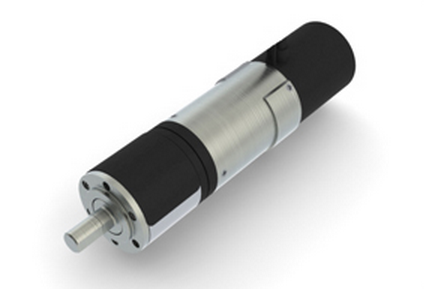

RH-Mini

RH-Mini

DC servo actuator with incremental encoder. Peak torque .39~20 Nm, max speed 50~180 rpm.

Learn More

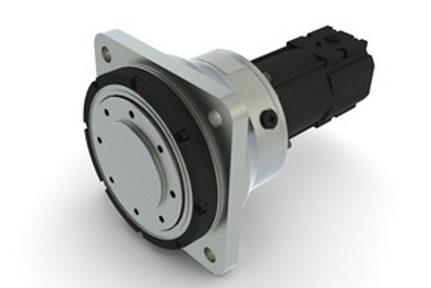

RKF

RKF

High torque AC servo actuator with output flange. Peak torque 56~330 Nm, max speed 45~90 rpm.

Learn More

Harmonic Drive is a leading designer and manufacturer of servo actuators, gearheads and other precision motor control components for a wide range of industrial applications. We work closely with Fortune 500 and smaller companies to create custom solutions that deliver the best results for every project. Our decades of experience and unmatched technical expertise can give your business a competitive edge and help you achieve your objectives.
